Fluid Transfer Tubes / Low Pressure Lines
Senior Flexonics engineers, tests and manufactures turbo oil feed tube assemblies and turbo oil drain tube assemblies to exceed customer guidelines and technical requirements. We design, manufacture, and supply complex tube assemblies for the world’s leading brands.

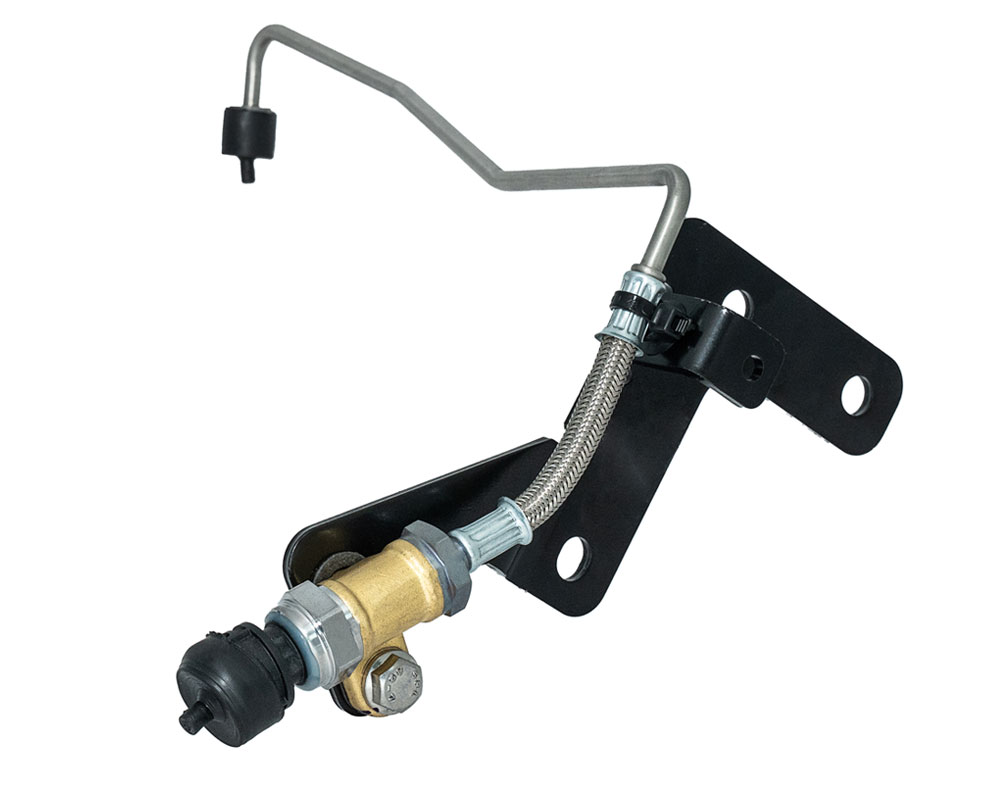

Steel tubes for oil lubrication systems of turbochargers of diesel and petrol engines, for engine cooling systems. The function of these pipes is to drive oil to turbochargers of both gasoline and diesel engines.

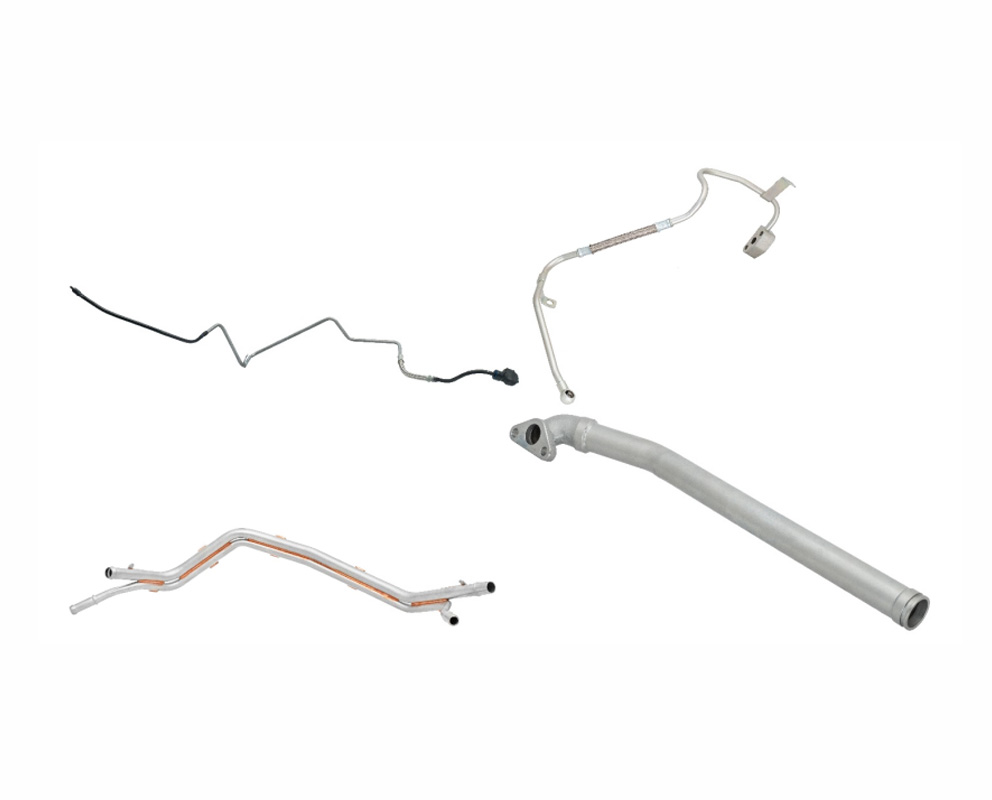

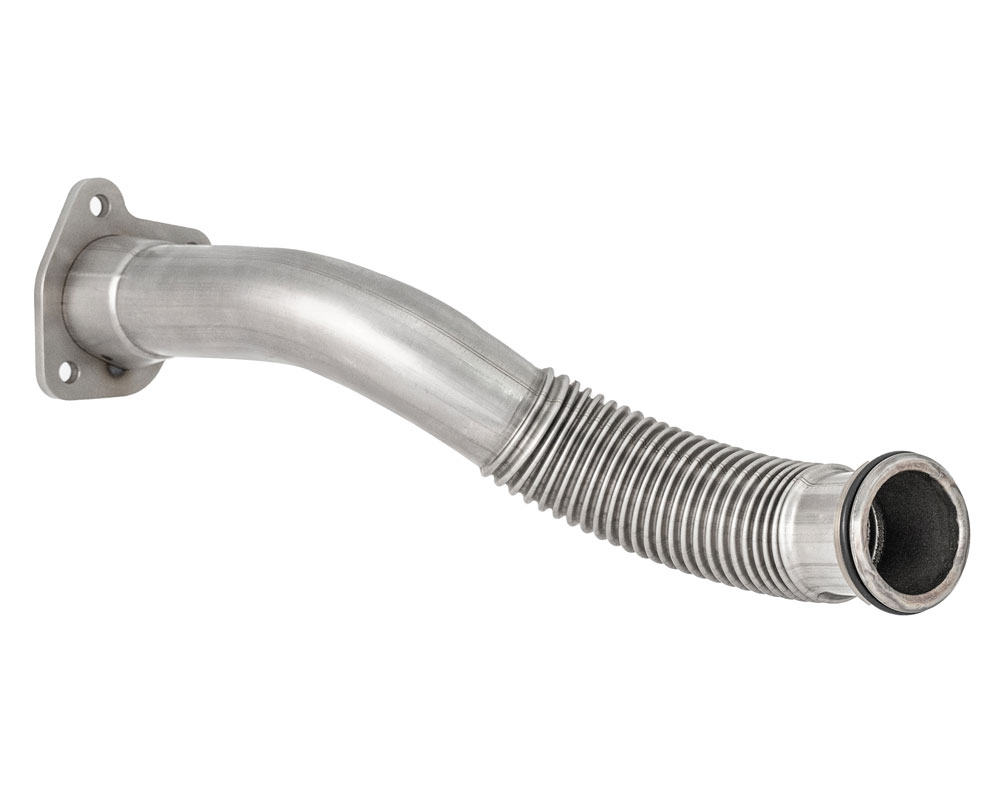

Senior produces various automotive tube configurations in carbon and stainless steel with both rigid and corrugated tubes designed to transfer water, oil and fuel throughout a range of passenger and heavy-duty diesel vehicles.
RangeConnection Diameter – 6 mm ~ 42 mm
Thickness – 0.30 mm ~ 2.6 mm
Stainless Steel Material – SS 304 / SS 304L / SS 321
Mild Steel Material – ST 35 / ST 45 / CEW 1 / SKTM / SAE 1010
Hose Material – PTFE/ EPDM/ Silicon/ Nylon
Plating – Zinc Nickel / Zinc Iron
Brazing – Vacuum Brazing/ Belt Furnace
Welding – TIG / MIG/ PUK/ Laser & Robotic Welding
Bending Machine – 8 Axis BLM/ 5
- Manufacturing Capabilities
Senior Flexonics’ production facilities are equipped with an extensive range of dedicated tooling for bending, forming, and joining complete assemblies including advanced multi-axis Computer Numeric Control (CNC) bending machines, hydroforming and brazing to name a few. Some of these manufacturing cells are augmented by robotics for large production runs of OEM parts.
- Key Features
• Drive oil to turbochargers of both gasoline & diesel engine.
• Tube systems have the opposite effect, so they drain the turbocharger oil into a diesel and gasoline engine block.
• Improves the engine efficiency.
• Controls the amount of coolant drive to the turbocharger.
• Controls the coolant oil pressure & maintains flexibility of pipe by use of PTFE which is adjustable.
- Applications
• Passenger Cars / SUV
• Commercial Vehicles
• Genset / Marine Engines
